PRIMA Conveyor Belts
The PRIMA range from Provulco SAS International (PT Provulco SAS International, Tangerang, Indonesia) covers every industrial conveying requirement — from ultra-high-tension steel cord belts for long-distance mining, to speciality textile belts for extreme impact, misalignment, and steep-incline applications.

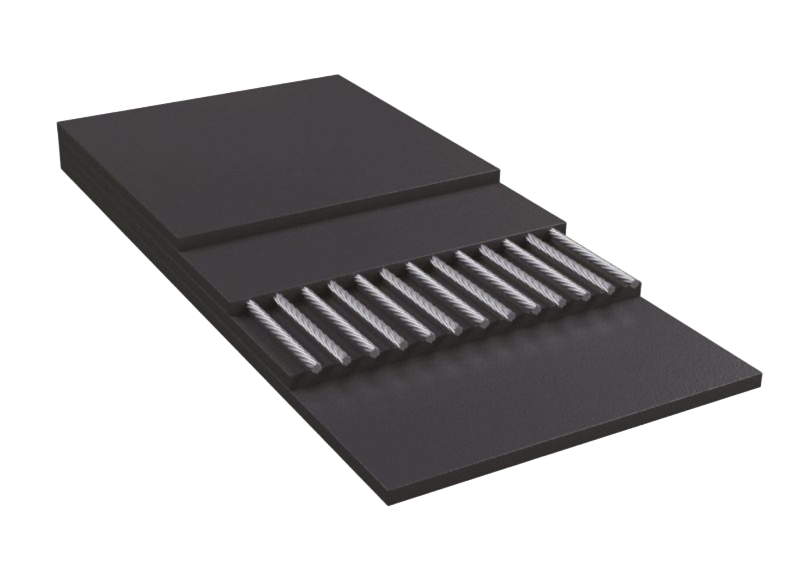

PRIMA STEEL
Steel cord belts for extreme long-distance and high-speed transport
Suitable for conveyors with large centre distances and high tensions. Compliant with DIN 22131, featuring very low elongation values and optimum suppleness for use with deep troughs. Available reinforced with a metal transverse elastic steel cord ply or textile ply for enhanced resistance to impacts, tears, or cuts.
- Rupture tensions 630 – 8,000 N/mm
- Warp cords: 7×7 or 7×19 · Ø 3.1 – 11.3 mm
- Maximum belt width: 2,700 mm
- Maximum bobbin weight: 50 tonnes
- Minimum bottom cover: 4 mm

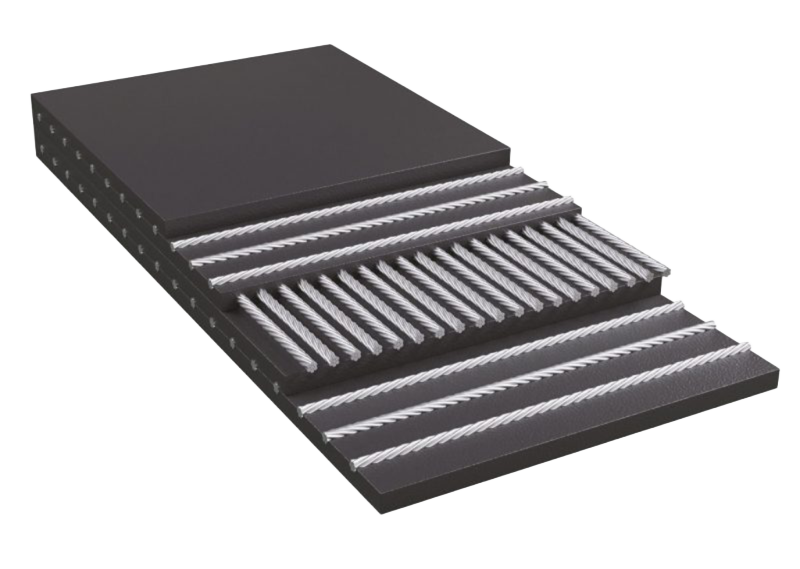

PRIMA CORD
Metal belt for complex or extremely testing operational environments
Hi-tech belt particularly suited to conveyors subject to high levels of stress — frequent stops and starts, impacts, cuts, and tears — and for conveyors with a winding curve where traditional solutions are unsuitable. Constructed with closely-spaced small diameter steel warp cords coated in a very elastic rubber layer and protected by two metal wefts using very high elasticity weft cords.
- Two metal weft protection layer
- Available in 4×7 (curved conveyors) & 7×7 (high-speed)
- Resistance to repeated impacts and stops/starts
- Penetration resistance by external objects
- Suitable for mechanical splicing and small drum diameters

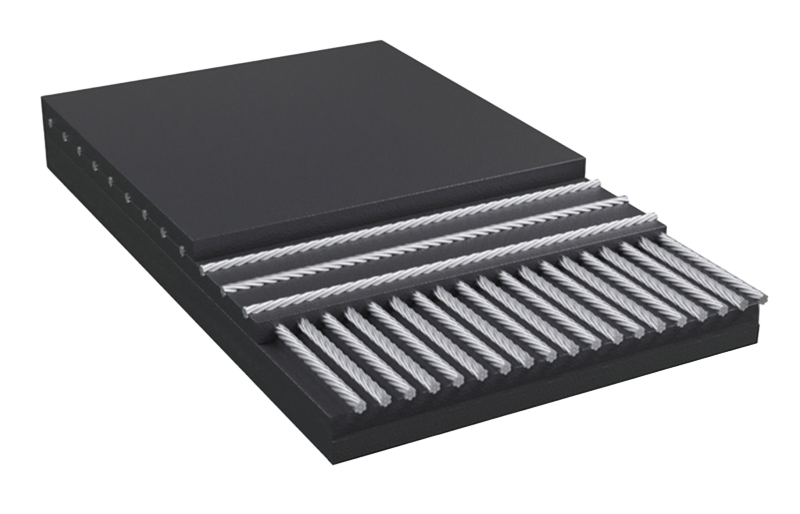

PRIMA TRANS
Single weft version of PRIMA CORD for targeted upper compound protection
A specialised version of the PRIMA CORD design, featuring a single metal weft that protects the warp cords in the upper compound area. Available in both 4×7 warp cord (for conveyors operating on curves in the horizontal and/or vertical plane) and 7×7 warp cord (for large centre distance and high-speed operation).
- Single metal weft in upper compound area
- 4×7 cords — median elongation, curved conveyors
- 7×7 cords — low elongation, long centre distance
- Excellent bond strength via hot vulcanising
- Suitable for mechanical splicing

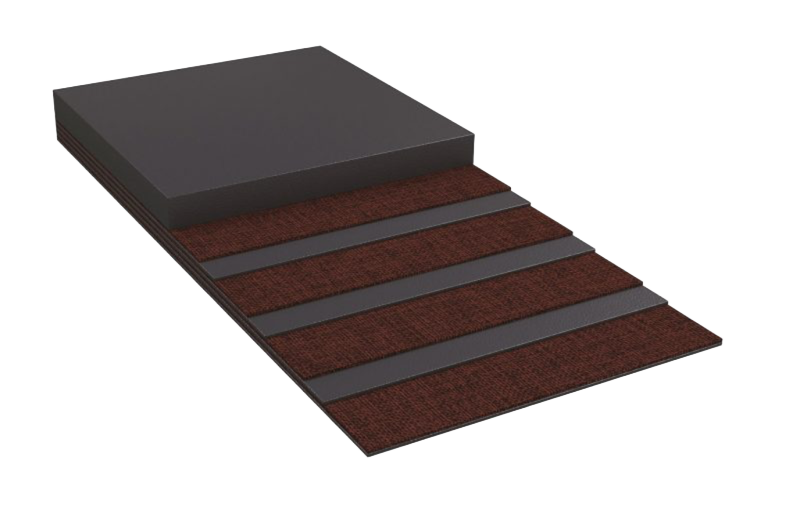

PRIMA PLY
EP or PP textile belts for moderate to extremely challenging operating conditions
Used for the transportation of bulk materials in all extractive and processing industries. PRIMA PLY EP belts (polyester warp and polyamide weft) are the most widely used, providing excellent rupture resistance and reduced elongation under loading for short-course tensioned systems. PRIMA PLY PP belts (polyamide in both warp and weft) are used for special applications requiring significant elongation in both directions — long drops, small diameter drums, or short trough transitions.
- EP type: polyester warp + polyamide weft (most widely used)
- PP type: polyamide warp & weft for high-elongation applications
- Available in 2 to 5 ply constructions
- Resistance range: 250 – 3,150 N/mm
- Excellent resistance to multiple stress types

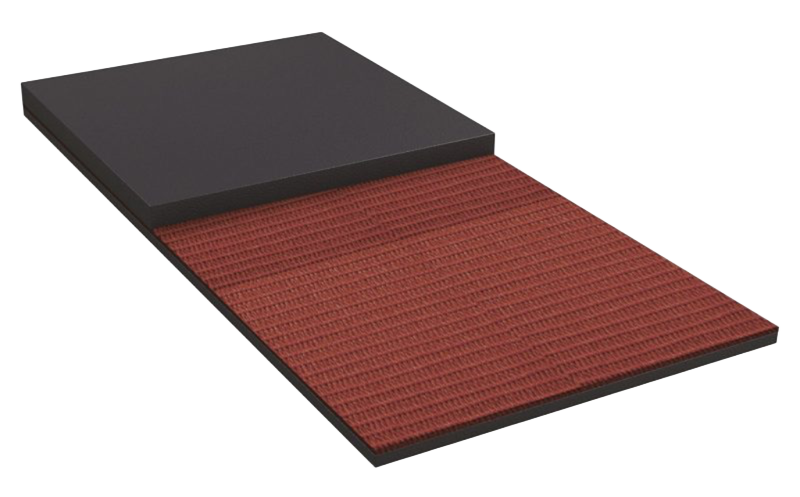

PRIMA FLEX
EPP textile belts for extreme operational conditions and low elongation values
Single layer EPP textile belts with excellent resistance to cuts, tears, and impacts — designed for conveyors subject to very significant stress. The specific combination of warp and weft threads guarantees reduced elongation under loading, stability in the lengthwise direction, excellent impact resistance, and excellent troughability. Particularly well-suited for short tension course conveyors and small drum diameter applications.
- Elongation reduced 30% vs traditional textile belt
- Excellent resistance to cuts, tears, and impacts
- Excellent troughability and guiding properties
- Suitable for conveyors with short tension course
- Compatible with mechanical splicing and hot vulcanising

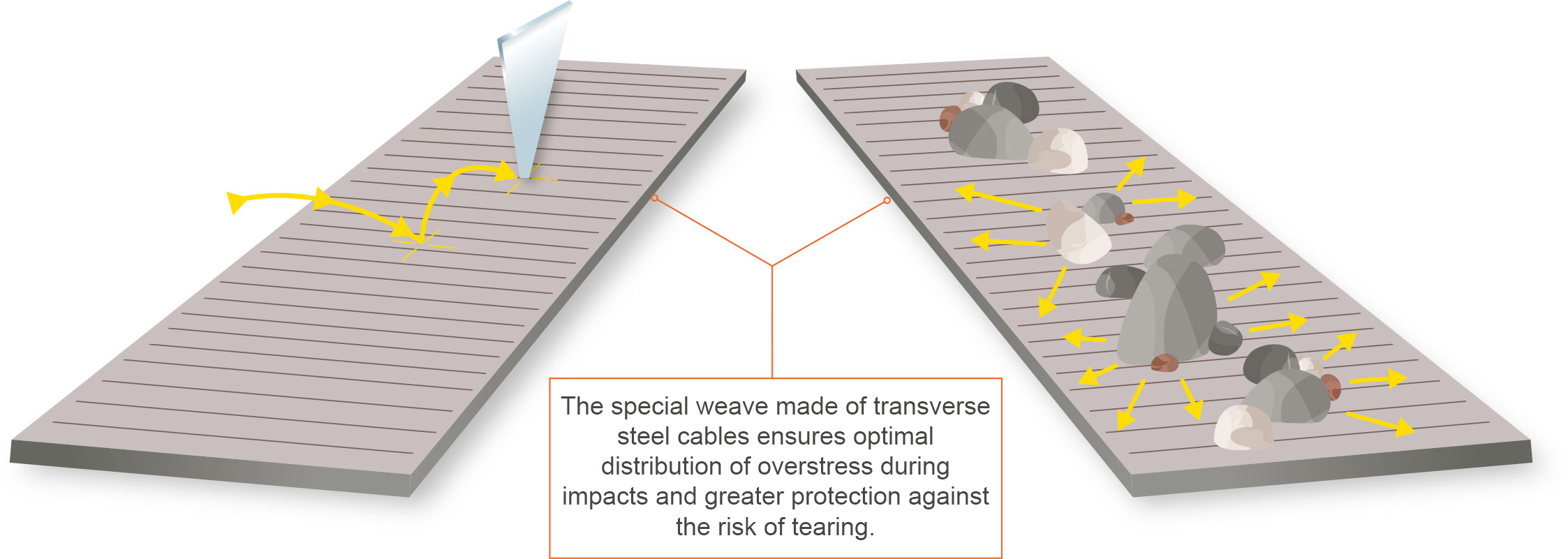

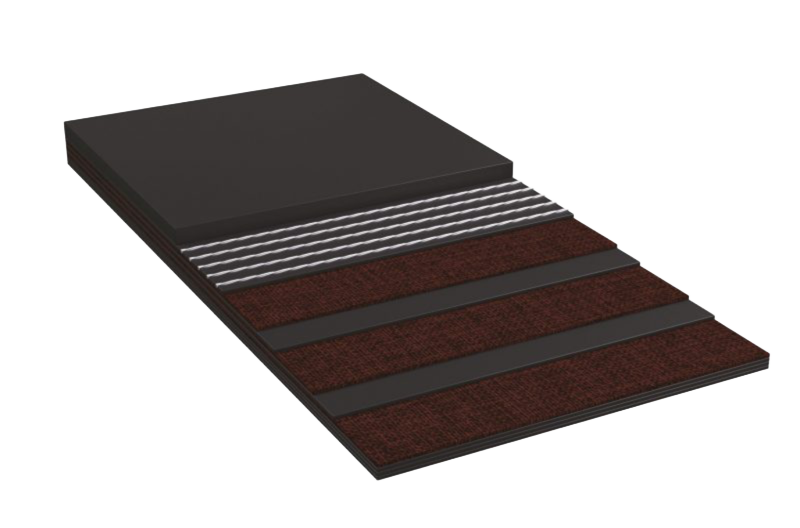

PRIMA ROCK
A textile belt equipped with a metal shield to withstand difficult operating conditions
Used on conveyors in difficult operational conditions where cuts, tears, and repeated impacts are a constant challenge. A special protective layer of steel weft cords is superimposed on the textile carcass, spreading impact stress forces more evenly across the belt. The protective layer is both tough and highly elastic — it not only protects against damage but also delivers excellent troughability. Cord type and spacing between cords can be tailored to suit specific conveyor operating conditions.
- Steel weft cord protective layer superimposed on textile carcass
- Better distribution of stresses upon impact
- Protection of the body against tears
- Excellent troughability maintained
- Cord type and spacing tailored to operating conditions
- Suitable for mechanical splicing

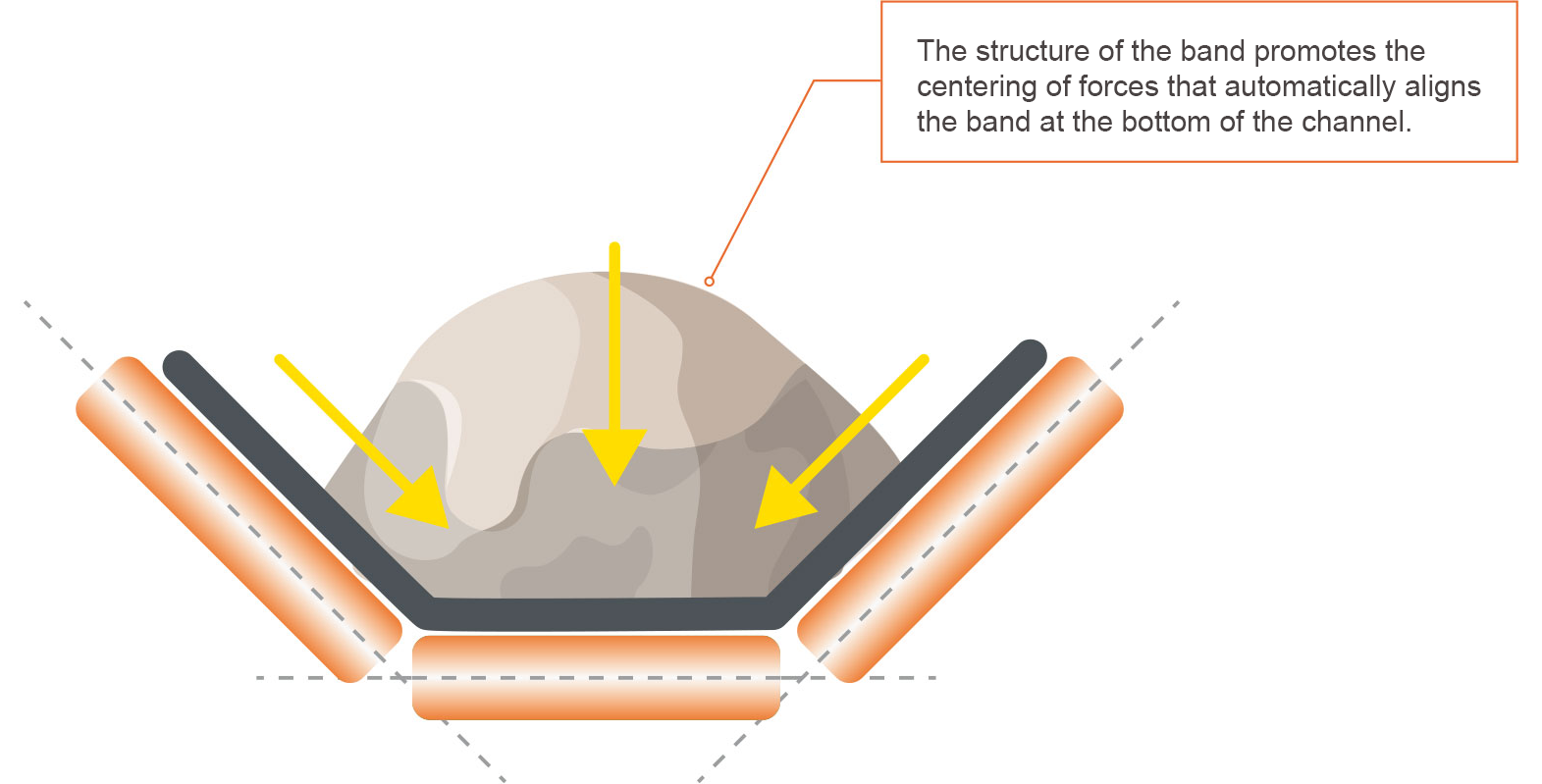

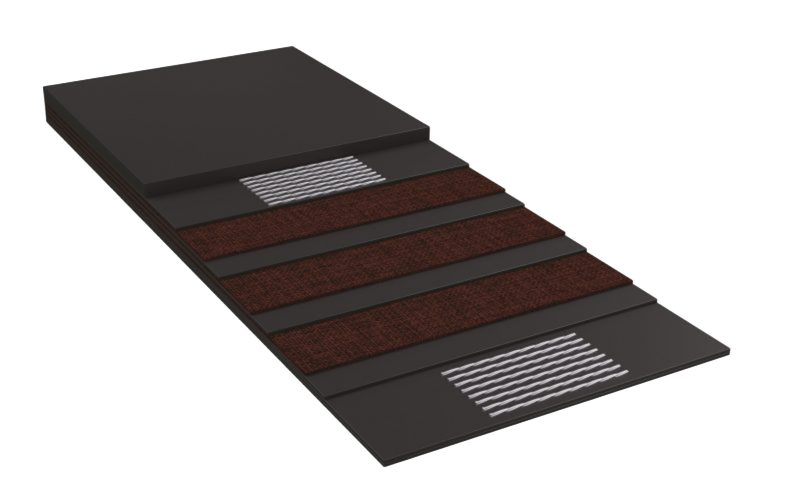

PRIMA STABLE
A belt that is naturally self-centring on the conveyor
Provides the solution to belt alignment problems through a unique body design that creates a naturally self-centring effect. Particularly suited to mobile and reversible equipment where offset problems are most frequent, and conveyors operating on a curve. Suited to carrying roller stations with 3 rollers and able to operate with trough angles from 35° to more than 60°. Requires no additional alignment device — installation and maintenance are conventional.
- Naturally self-centring belt body
- Trough angles: 35° to more than 60° (up to 90°)
- Ideal for reversible and mobile conveyors
- Reduces material loss due to belt offset
- No additional alignment device required
- Available in textile and metal versions
